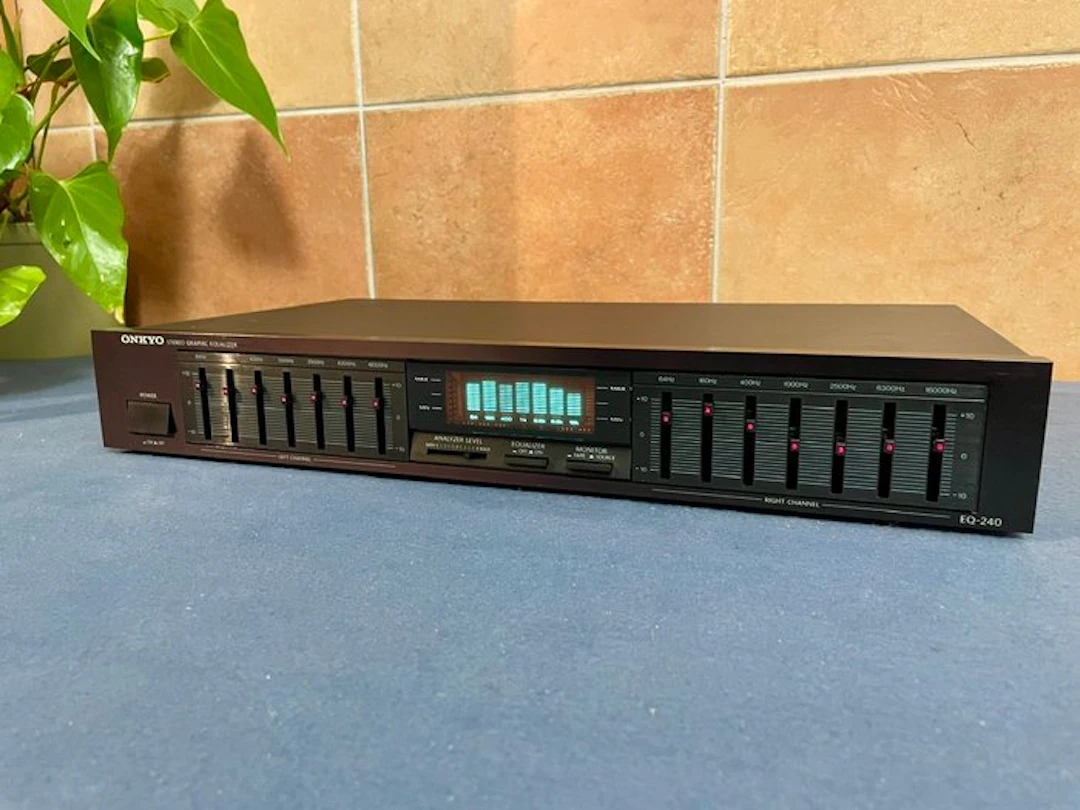

Onkyo - EQ-240 Stereo graphic equalizer

The Onkyo EQ-240 is a classic 7-band stereo graphic equalizer, produced by the Japanese manufacturer Onkyo between 1988 and 1990. It is a popular addition to vintage hi-fi systems, allowing users to fine-tune sound reproduction to suit room acoustics or personal preferences. Key features • 7-band spectrum analyzer: Provides a visual representation of the output signal for both the left and right channels via separate displays. • Illuminated sliders: The sliders feature built-in LED indicators, making precise adjustments easy even in low-light conditions. • Equalizer bypass: A physical bypass switch allows the equalization to be instantly disabled, letting you hear the pure, unprocessed sound. Technical Specifications Feature Specification Number of bands 2x 7 bands (independent per channel) Frequency bands 64Hz, 160Hz, 400Hz, 1kHz, 2.5kHz, 6.3kHz, 16kHz Control range ± 12 dB per band Frequency response 10 Hz to 35,000 Hz (+0, -0.5dB) Signal-to-noise ratio 100 dB Total harmonic distortion (THD) < 0.010% Input sensitivity 150mV (5V max) Dimensions (W x H x D) 435 x 71 x 257 mm Weight 2.9 kg Country of origin Japan Connectivity The EQ-240 features standard RCA (phono) connectors on the rear panel. It is typically connected between a preamplifier and a power amplifier, or via the Tape Monitor loop (Tape Rec/Play) of an integrated amplifier or receiver. Additionally, the unit itself includes an extra Tape connection, ensuring that no tape input on the amplifier is lost. Carefully shipped and insured

Estimate:£167.43
