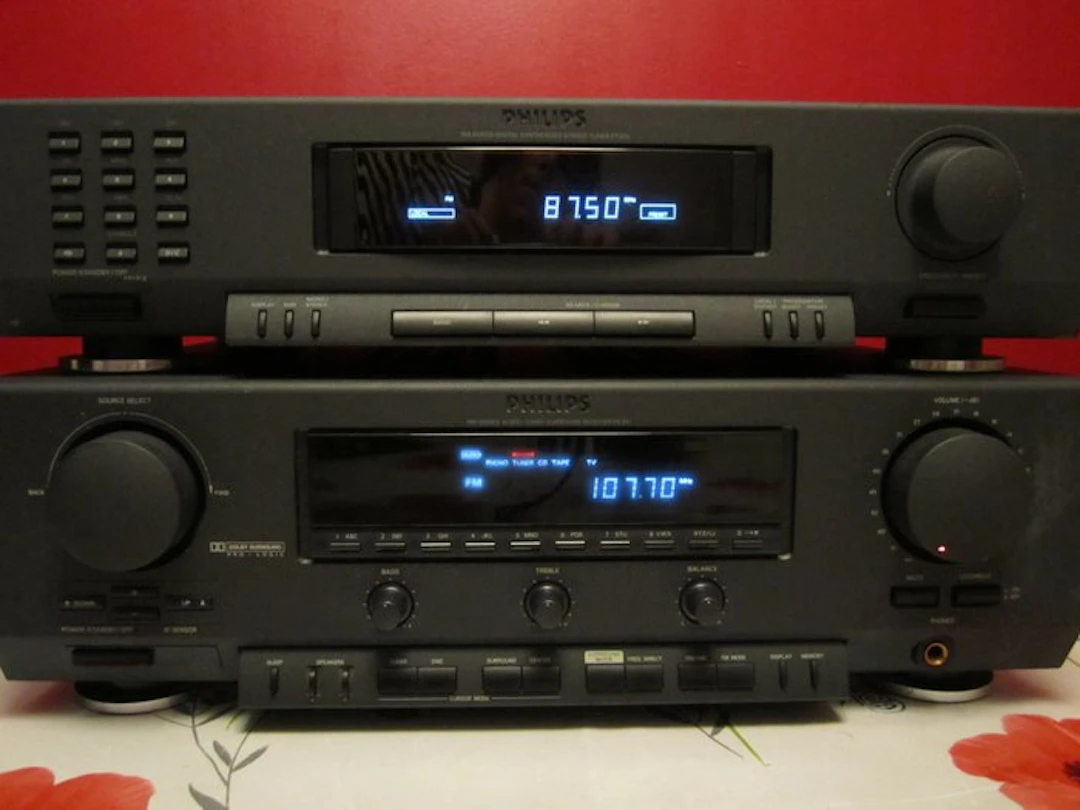

Philips - FT920 Tuner & FR931 Receiver Hi-fi set

The Philips FR 931 is a solid audio/video surround receiver from the well-known Philips 900-series, produced in the 1990s. The device combines a classic stereo amplifier with early home-theater features (such as Dolby Pro Logic decoding). Here is the key technical specification gathered from the Philips FR 931 Manual and the official service data: • Output power (Stereo): 55 watts per channel into 8Ω (frequency range 20 Hz to 20 kHz) • Total Harmonic Distortion (THD): 0.5% • Signal-to-Noise Ratio (S/N Ratio): 95 dB (line) • Channel Separation: 50 dB (at 1 kHz) • Speaker impedance: • Front speakers: minimum 8Ω (suitable for 8–16Ω) • Surround speakers: 8–16Ω • Center speaker: 4–6Ω • Tuning range: FM and MW (Medium Wave) • FM range: 87.5 – 108 MHz • MW range: 522 – 1611 kHz • Audio inputs: Phono (for a turntable without built-in preamplifier), CD, Tape, DCC (Digital Compact Cassette) and TV/Aux • Video connections: Composite video • System control: Equipped with the Philips ESI Bus (Enhanced System Intelligence) to communicate with other components from the 900-series via a single remote control. • Dimensions (W x H x D): 43.5 x 14 x 30 cm • Weight: About 7 kg • Mains voltage: AC 230V, 50 Hz Conversation in AI mode: philips ft920 specs philips ft920 specs The Philips FT920 (part of the well-known 900 series) is a high-quality, digitally synthesized stereo tuner produced in the early 1990s. The device was manufactured at the time, among other places, in Belgium. Here are the key technical specifications and features: General Specifications • Type: AM/FM Digital Synthesized Stereo Tuner • Introduction year: 1992 / 1993 • Color: Anthracite • Enclosure material: Metal chassis • Dimensions (W x H x D): 435 x 106 x 300 mm • Weight: 3.5 kg • Power consumption: 7 Watts Audio & Reception • Tuning bands: • FM (UKW): 87.5 - 108 MHz • MW (AM): 522 - 1,611 kHz • LW (Long Wave): 153 - 279 kHz • Frequency response: 30 - 15,000 Hz (+0.5, -2 dB) • Total Harmonic Distortion (THD): 0.3% • Tuner architecture: Equivalent to a 3-gang tuning with 3 filters (single-bandwidth).

Estimate:£167.51
